Tianjin Lucheng Industrial And Trading Co., Ltd. is one of the leading manufacturers and suppliers of low bottom track retractable fly screen door in China. We provide high quality products with competitive price for global clients. If you're going to buy discount low bottom track retractable fly screen door made in China, welcome to get quotation from our factory.

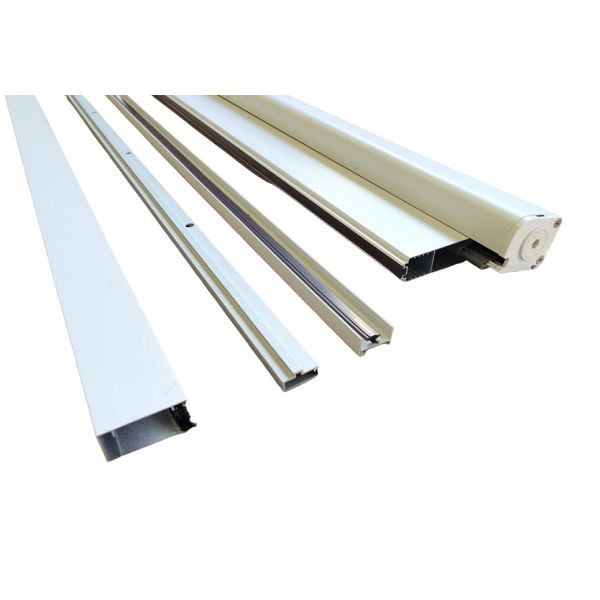

Low Bottom Track Retractable Fly Screen Door

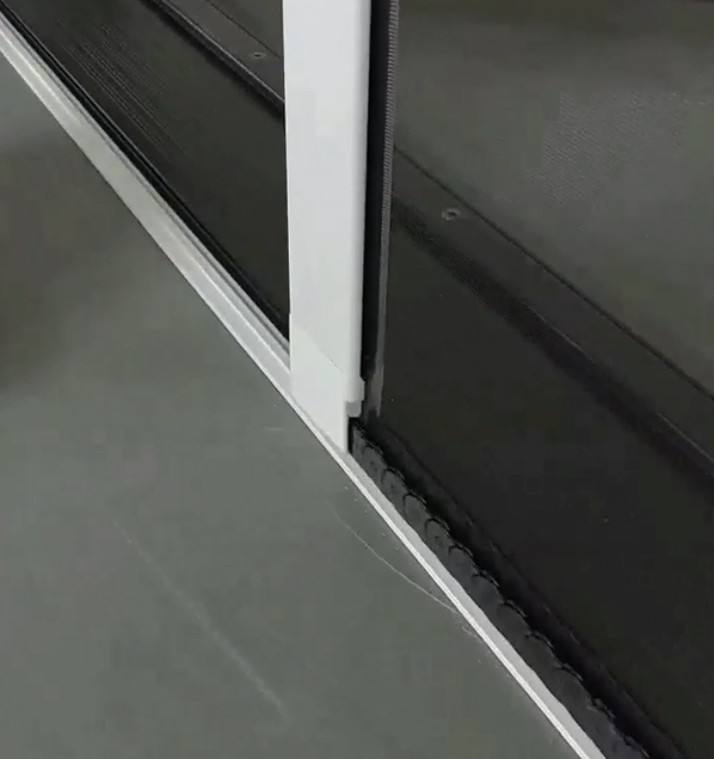

This Low bottom track retractable fly screen door features a bottom rail measuring just 15mm, offering excellent accessibility-even wheelchairs can pass through with ease. Suitable for door frames with a 39mm recess depth, Low bottom track retractable fly screen door features a magnetic seal for enhanced wind resistance. Installation requires just six screws, perfectly combining protection with convenience-opening on demand, closing swiftly, and adapting flexibly to a variety of needs.
Available to be made to measure, the tear-resistant fibreglass mesh effectively prevents mosquitoes, flies and wasps from entering the room.
Feature
- Made from extruded, powder-coated aluminium profile
- Barrier free design(caterpillar) gives perfect passibility
- could be cut to fit for different sizes
- High quality fiberglass mesh
- Flat fiberglass mesh gives better visibility.
- Automatic retractable screen system
|
|
Parameter
|
Model |
HNW02 |
|
Popular Size |
1000*2100; 1200*2200; |
|
Max. Width(mm) |
1400 |
|
Max. Height(mm) |
2300 |
|
Min. Width(mm) |
500 |
|
Min. Height(mm) |
1800 |
|
Profile |
|
|
Profile material |
Aluminium |
|
Profile Painting |
Electrostatic Powder Coating |
|
Profile Color |
White(RAL9016) Or other colors |
|
Color Surface |
Sand coated |
|
Installation Depth(mm) |
45 |
|
Mesh |
|
|
Farbic Color |
Black |
|
Fabric Material |
100% Polyester (PES) |
|
Fabric Holes |
16*18/ in² |
|
Assembly |
|
|
Customizable size |
Yes |
|
Mounting type |
Screwing |
|
Mounting way |
Recess Fit (fit inside the window frame) |
|
Mounting position |
Indoor or Outdoor |
|
Tools |
Pencil, file, mitre box, tape measure, metal saw, Phillips screwdriver,Electric Drill |
|
Maintenance |
|
|
Washable |
Yes |
|
UV-resistant |
Yes |
|
Sales way |
|
|
Components |
No |
|
Finished set |
Yes |
|
Certificate |
CE,BSCI,ISO9001, ISO14001 |
Mounting Way
Package
Our Factory
Since 1995 in Tianjin's Teda District, Tianjin Lucheng Industrial and Trading Co.,LTD TEDA has been innovating anti-m mosquito screen systems and shading products. Tianjin's port location enhances logistics efficiency. After 26 years, Lucheng serves global markets, including prominent wholesalers and supermarket chains in Europe, America, and Australia. With an expert design team and patented technologies, we manage OEM/ODM orders efficiently. Our proprietary automated lines for screens and awnings enable quick, high-volume production at competitive prices. A professional quality team monitors every step, from material intake to delivery, adhering to BSCI, ISO, Blue Angle, and GS standards. We support both catalog choices and custom requests.
Our Strength
Exhibition & Honor
FAQ
Q: Could you clarify your standard payment conditions?
A: Our standard procedure involves a 30% advance payment via Bank Transfer. The outstanding 70% balance is payable after we share images confirming the production and packing of your order, but prior to its dispatch.
Q: What are the offered shipping incoterms?
A: While we primarily operate on an FOB basis, we maintain flexibility and can also accommodate EXW, CIF, and DDP arrangements to suit your logistics.
Q: From which ports do you typically ship?
A: The majority of our exports are handled through the major ports of Qingdao and Tianjin.
Q: How long until my order is ready?
A: For custom retail orders, we target 15 days. For larger mass orders, please allow 30-50 days after we receive your deposit. The exact time frame will be confirmed based on your specific order details.
Q: Can you work with my designs or create new ones?
A: We certainly can. We accept both OEM (your design) and ODM (our co-design) projects. Our professional design team, with 6+ years of experience, will work closely with you. We also handle all tooling, like molds.
Q: What about samples?
A: We provide samples for evaluation. The customer covers the sample cost and courier fee initially, but this amount will be reimbursed when you place a formal production order.
Q: How is quality controlled?
A: Every single item is rigorously endurance-tested, performing over 6000 cycles, ensuring reliability before it reaches the market.
Q: What support do you offer for selling the products?
A: To help you sell, we can customize all necessary materials-from manuals and boxes to animated installation guides and retail displays-specifically for your local market.
Q: Can we buy parts to assemble locally?
A: Definitely. You can purchase all necessary components (profiles, mesh, fittings) from us. We also provide video tutorials, production solutions, and equipment recommendations to support your local assembly.
