Tianjin Lucheng Industrial And Trading Co., Ltd. is one of the leading manufacturers and suppliers of roof top retractable awning in China. We provide high quality products with competitive price for global clients. If you're going to buy discount roof top retractable awning made in China, welcome to get quotation from our factory.
TIANJIN LUCHENG INDUSTRIAL AND TRADING CO., LTD TEDA is one of China's premier manufacturers and suppliers of motorized awnings.If you have a need to purchase window screens or outdoor sunshade products, please click the window on the right to contact us and obtain a customized quote.

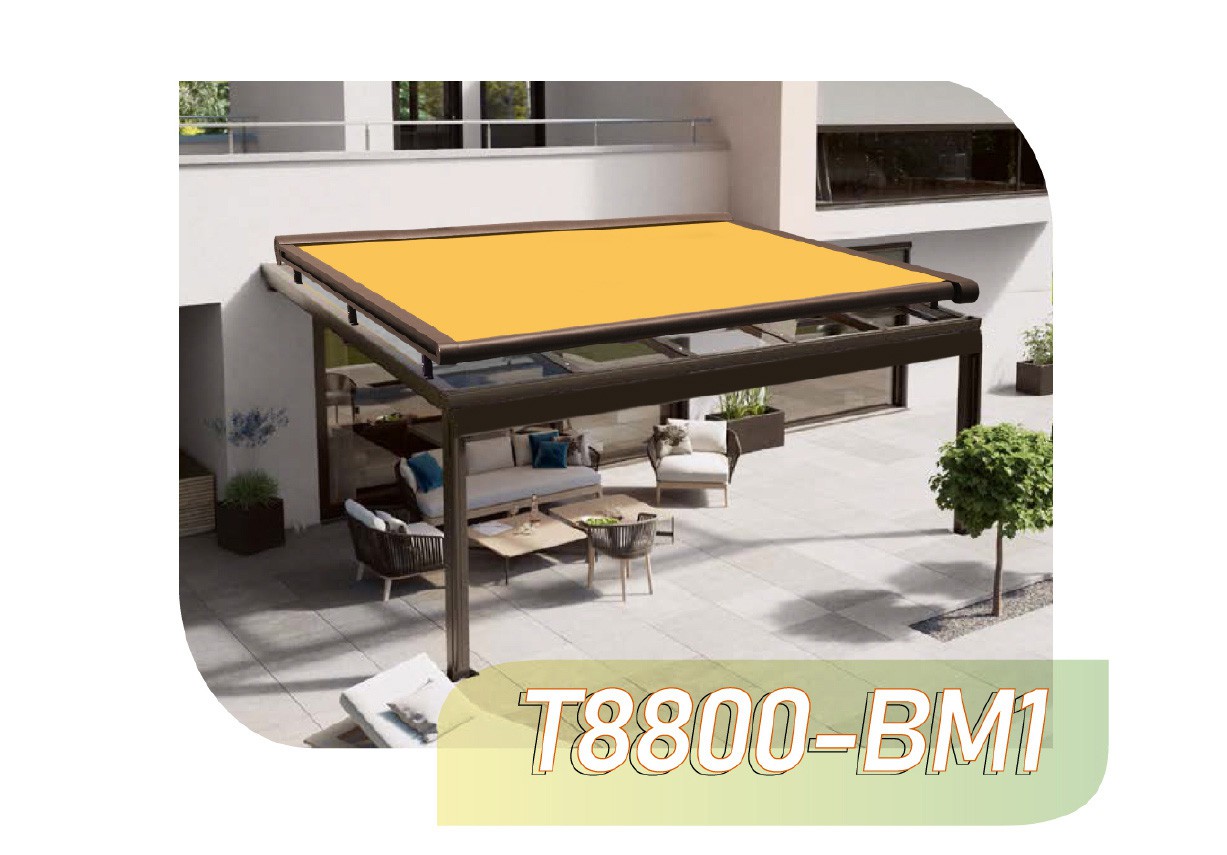

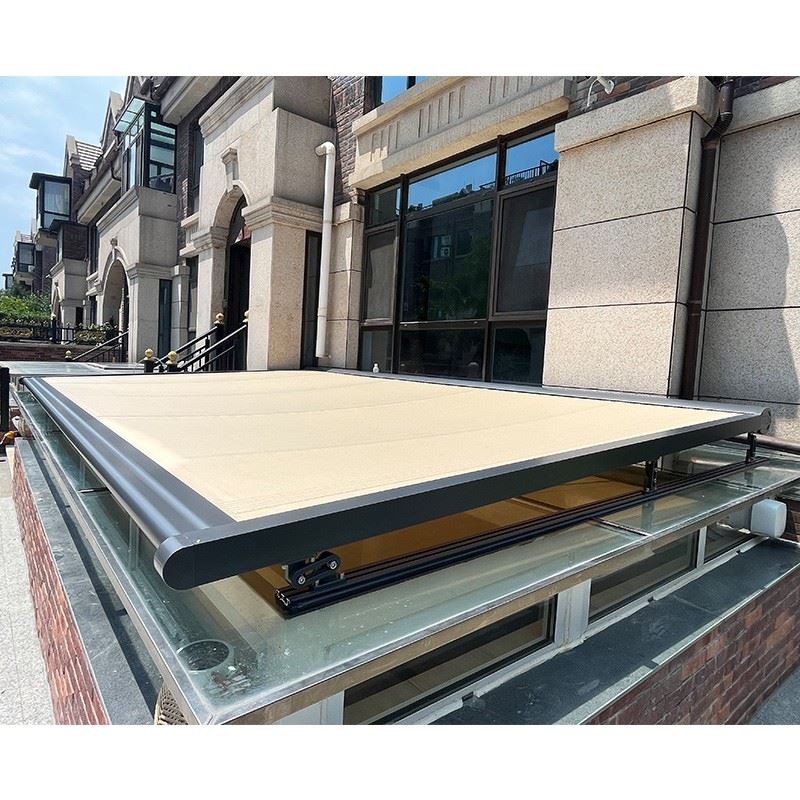

T8800 Roof Top Retractable Awning
Engineered specifically for conservatories, sunrooms, glass extensions, and large skylights, the roof top retractable awning is an advanced exterior shading solution designed to effectively reduce the uncomfortable "Greenhouse Effect." By installing the shading system on the outside of the glass, this conservatory awning intercepts solar radiation before it enters the building, helping reduce heat buildup and keeping interior spaces significantly cooler during hot weather.
Our innovative gas-piston tensioning system, integrated directly within the guide rails, maintains consistent fabric tension across large spans, ensuring a smooth appearance and reliable operation even in demanding conditions. The robust aluminum structure and high-quality outdoor fabric are designed to deliver excellent sun protection, durability, and weather resistance while withstanding challenging wind loads. More than just a skylight shading system, this roof top retractable awning provides an intelligent approach to passive climate control. It helps create a cooler, more comfortable, and energy-efficient living environment, allowing homeowners to enjoy their sunroom throughout more seasons of the year.
|
Roller |
Φ80mm or Φ90 Steel |
|
Box |
150x188mm |
|
Front bar |
Aluminum 143x70mm |
|
Rail |
68*78.5mm |
|
Frame |
Outdoor Powder Coated |
|
Connector |
Aluminum Die Cast |
|
Packing |
Each pc/Carton |
|
Max size per unit |
Width 6m,Projection 6m |
|
Voltage |
110-240V |

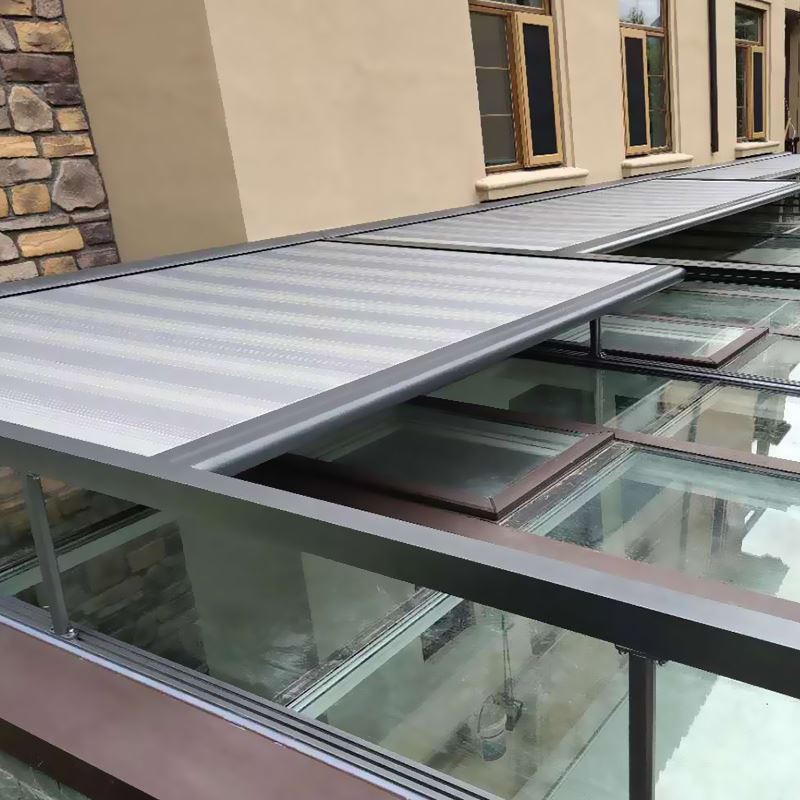

The Roof awning is an outdoor architectural shading product specifically designed for glass roof structures such as sunrooms. It is suitable for external shading of various glass sunroom roofs, skylights, atriums, courtyards, and balconies, with far superior heat insulation performance compared to any indoor shading products. It significantly reduces indoor temperatures, thereby achieving energy-saving effects.
The Roof awning can directly replace steel structure sunrooms and acrylic sun panel projects, offering greater flexibility andvers atility. The structure is meticulously designed for robustness, high wind resistance, and an elegant, luxurious appearance with an open and spacious feel.
It can be operated via digital remote control or equipped with an intelligent wind-light-rain sensor that automatically adjusts based on external conditions, providing flexible shading for buildings and homes throughout the year. During the scorching summer, it performs at its best, and customized solutions can be designed according to practical usage needs.

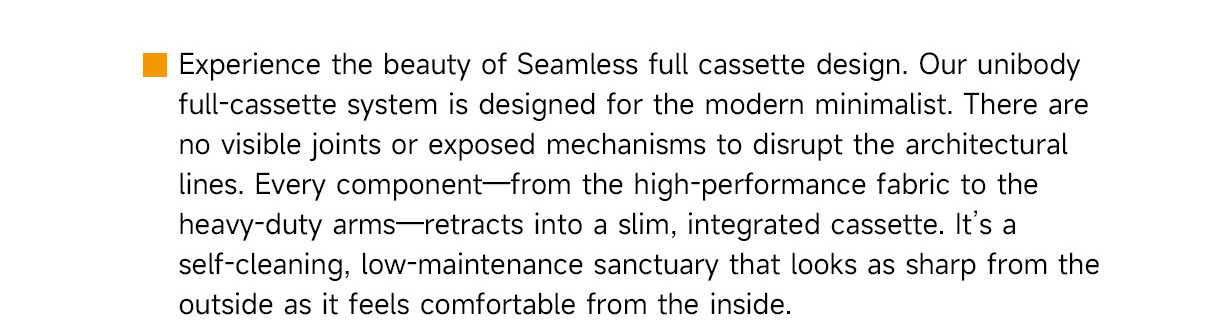

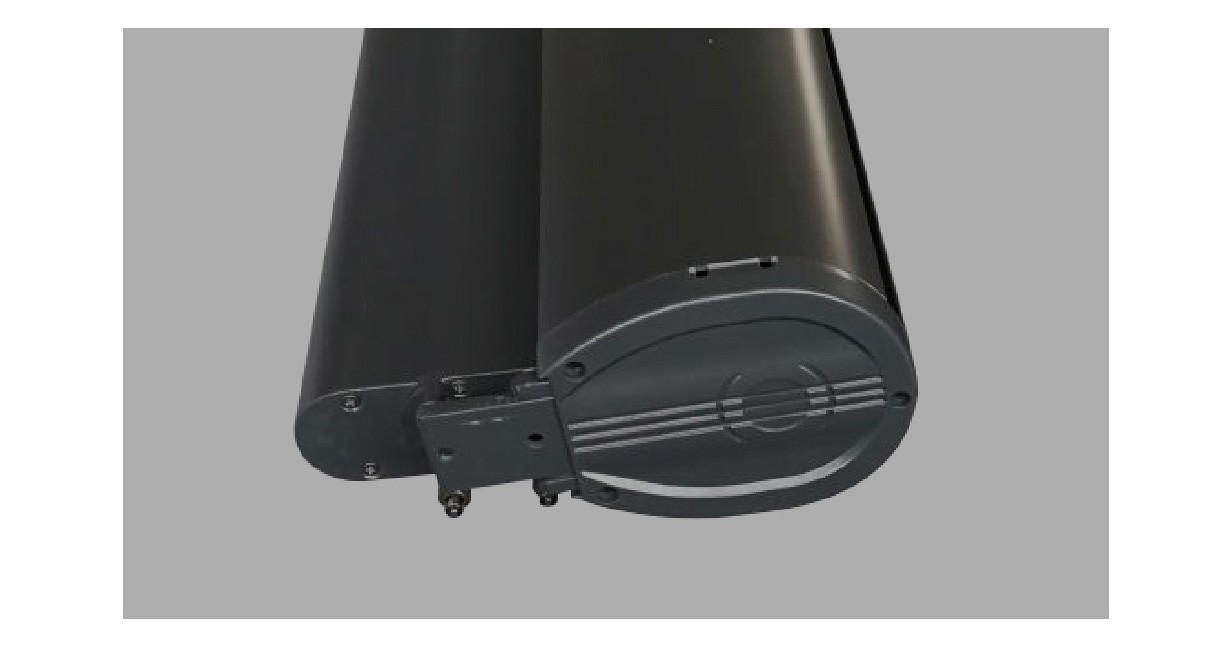

Experience the beauty of Seamless full cassette design. Our unibody full-cassette system is designed for the modern minimalist. There are no visible joints or exposed mechanisms to disrupt the architectural lines. Every component from the high-performance fabric to the heavy-duty arms retracts into a slim, integrated cassette. It's a self-cleaning, low-maintenance sanctuary that looks as sharp from the outside as it feels comfortable from the inside.

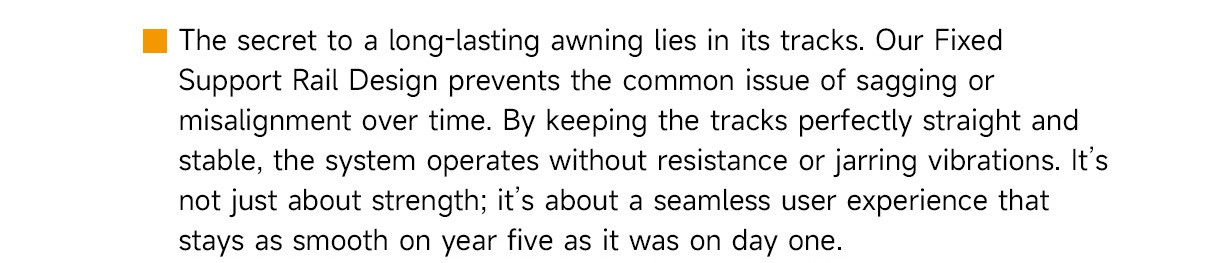

The secret to a long-lasting awning lies in its tracks. Our Fixed Support Rail Design prevents the common issue of sagging or misalignment over time. By keeping the tracks perfectly straight and stable, the system operates without resistance or jarring vibrations. It's not just about strength. It's about a seamless user experience that stays as smooth on year five as it was on day one.

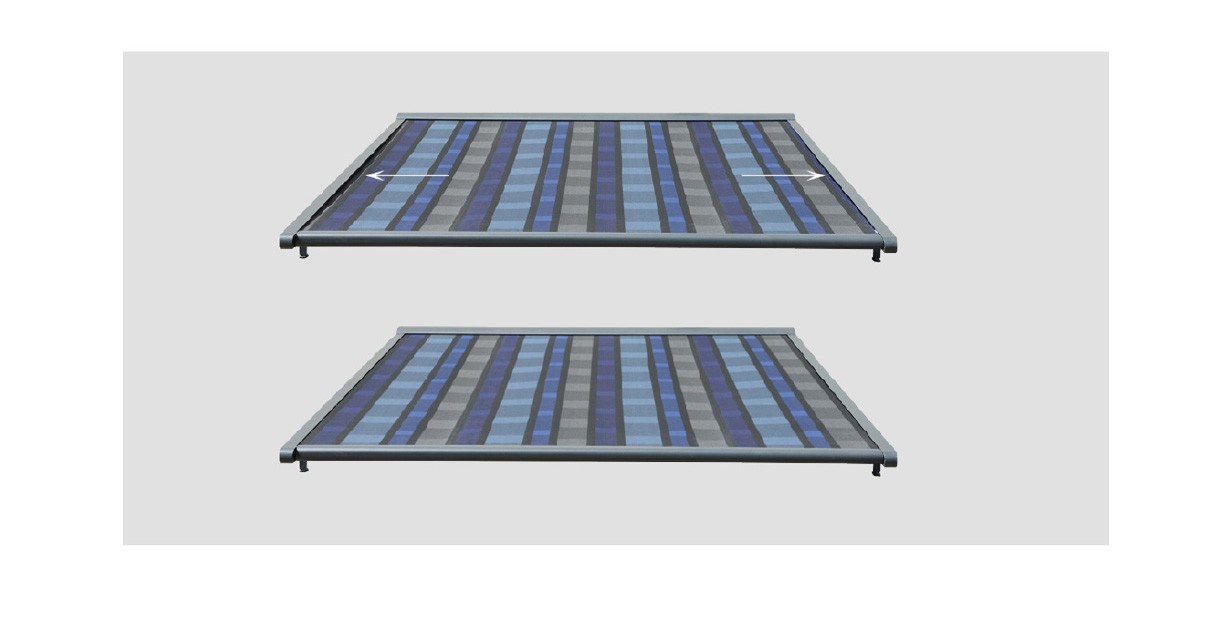

Say goodbye to sagging fabric and fluttering edges. Our special Gas Tension Spring System is engineered to deliver a"Drum-Tight" finish that traditional awnings simply can't achieve.The high-tension pneumatic cylinders maintain a powerful, steady pull that counteracts wind pressure and gravity. The result? A cleaner look, a quieter experience in breezy conditions, and a system that won't lose its "snap" even after years of daily operation.
Precision in every drop. Our Integrated Front-Beam Gutter utilizes aunique anti-backflow geometry to manage water discharge duringheavy rain and steep positioning. By eliminating beam-undersidedripping and channeling flow to the lateral outlets, we offer aseamless, worry-free sheltering experience. It is the perfect marriageof architectural aesthetics and superior hydraulic performance.

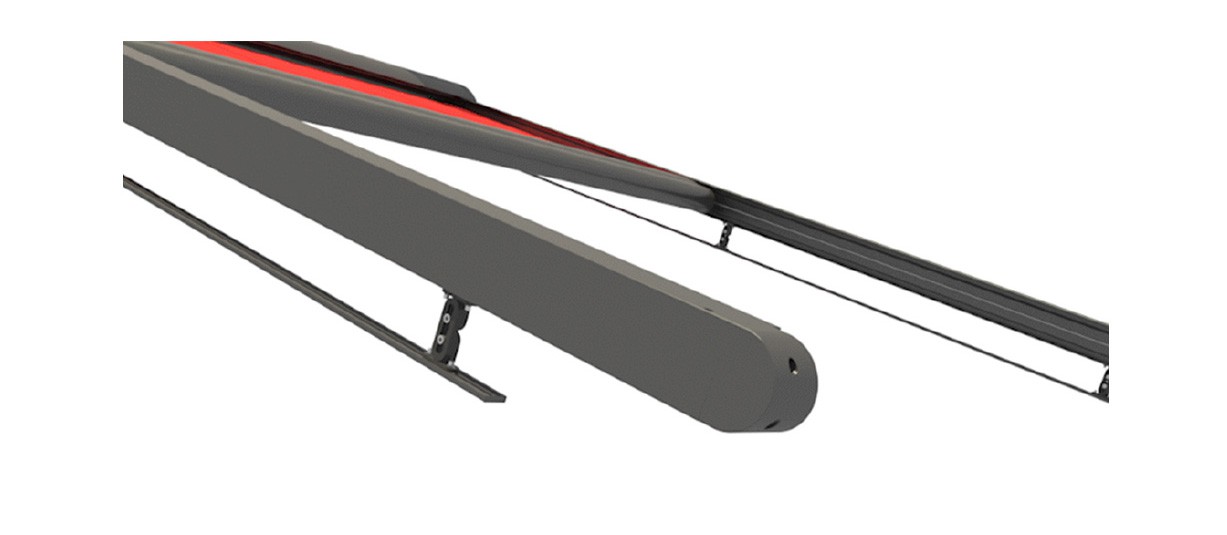

The bilateral pneumatic device of the patent is concealed within the track, ensuring both rust prevention and overall aesthetic appeal and enclosure.

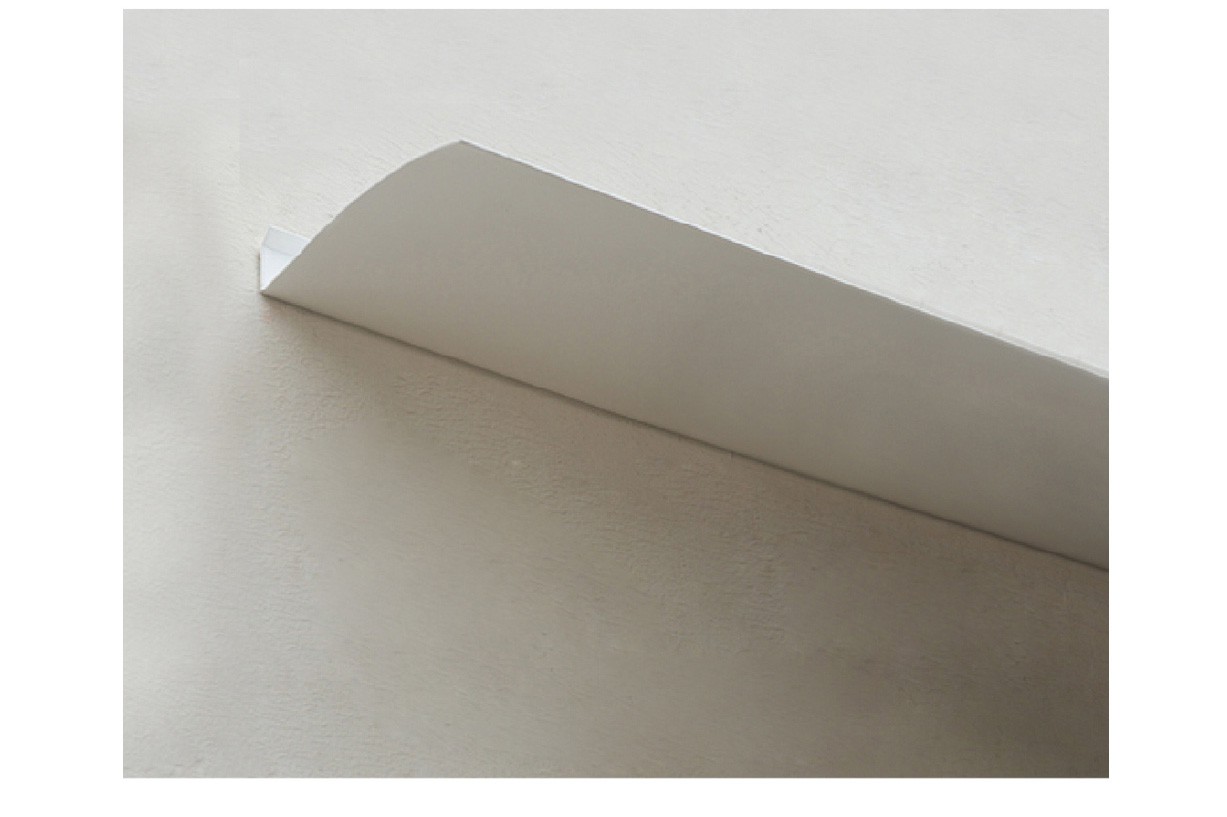

Rain deflector profile can be configured to prevent water leakage from the fixed gap between the wall.

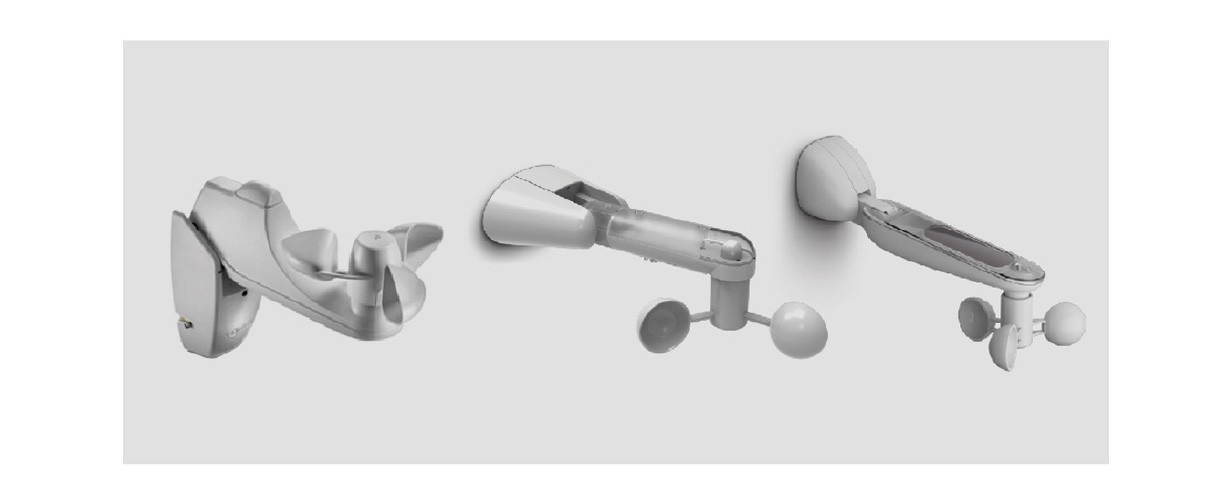

Optional wind light and rain intelligent controller equipment can be equipped to ensure automatic retraction of the awning under extreme weather

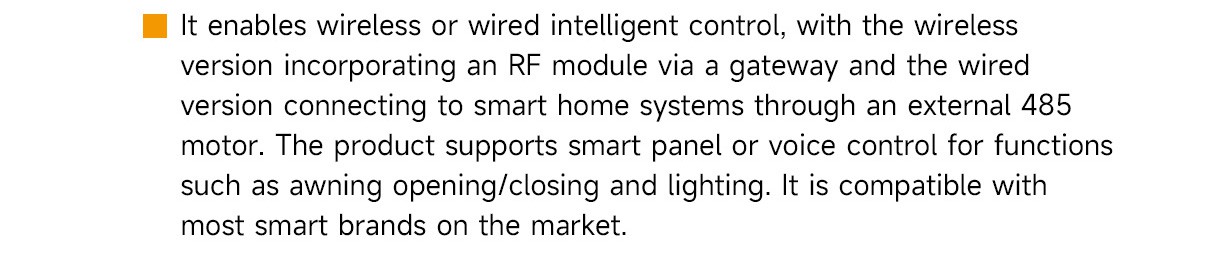

It enables wireless or wired intelligent control, with the wireless version incorporating an RF module via a gateway and the wired version connecting to smart home systems through an external 485 motor. The product supports smart panel or voice control for functions such as awning opening/closing and lighting. It is compatible with most smart brands on the market.

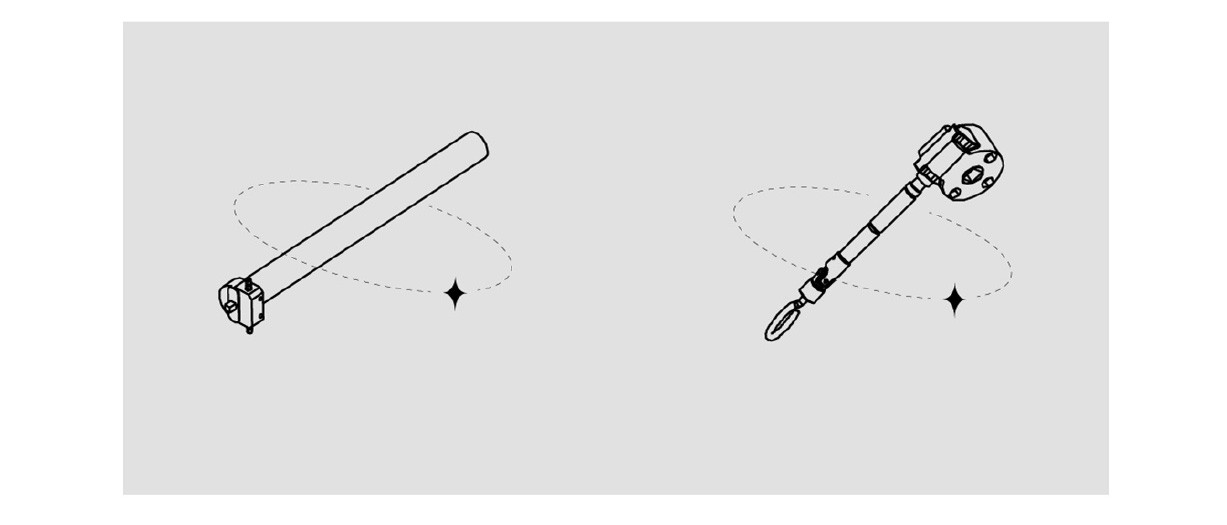

Integrated motorized and manual design prevents failure to retract the awning during power outages or motor malfunctions.

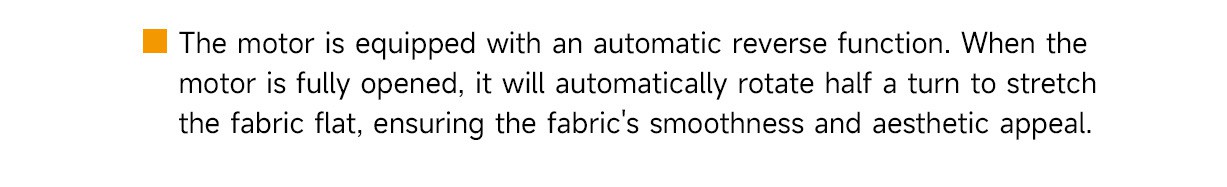

The motor is equipped with an automatic reverse function. When the motor is fully opened, it will automatically rotate half a turn to stretch the fabric flat, ensuring the fabric's smoothness and aesthetic appeal.

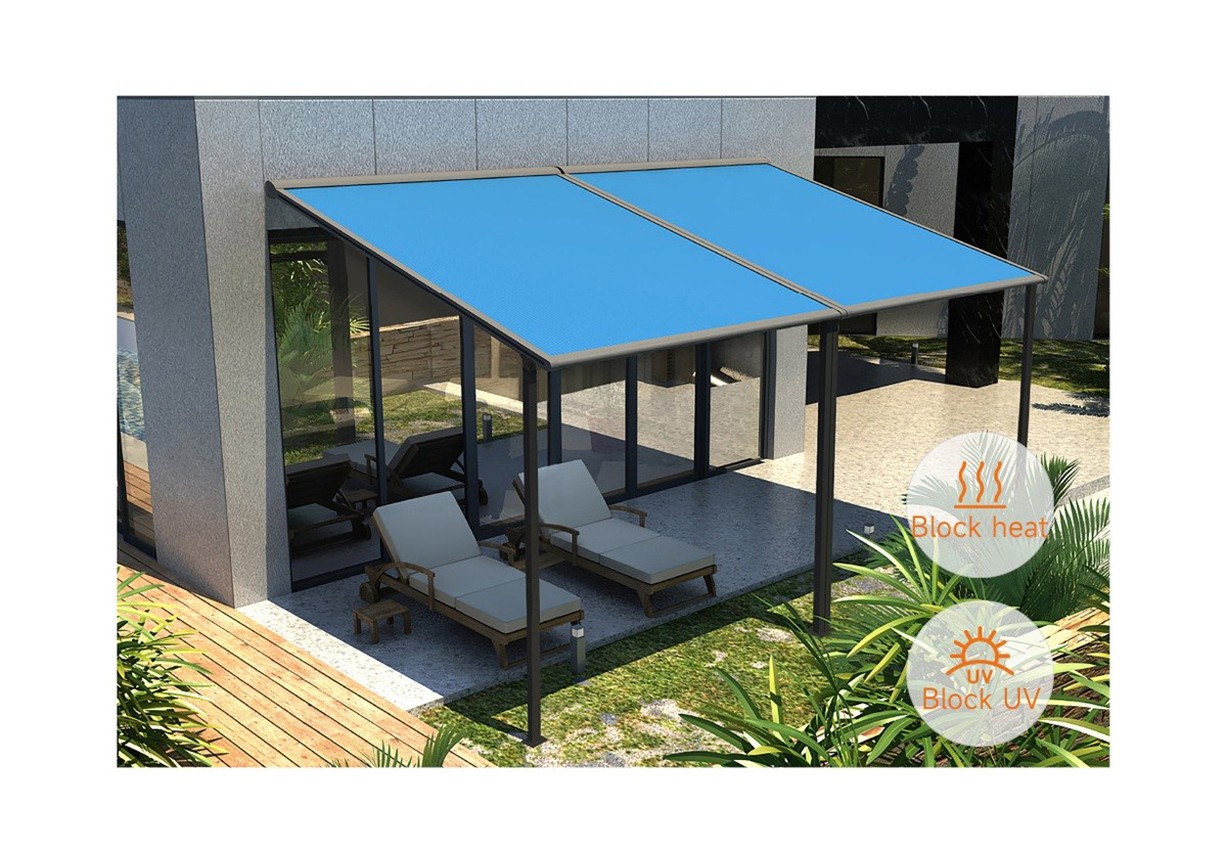

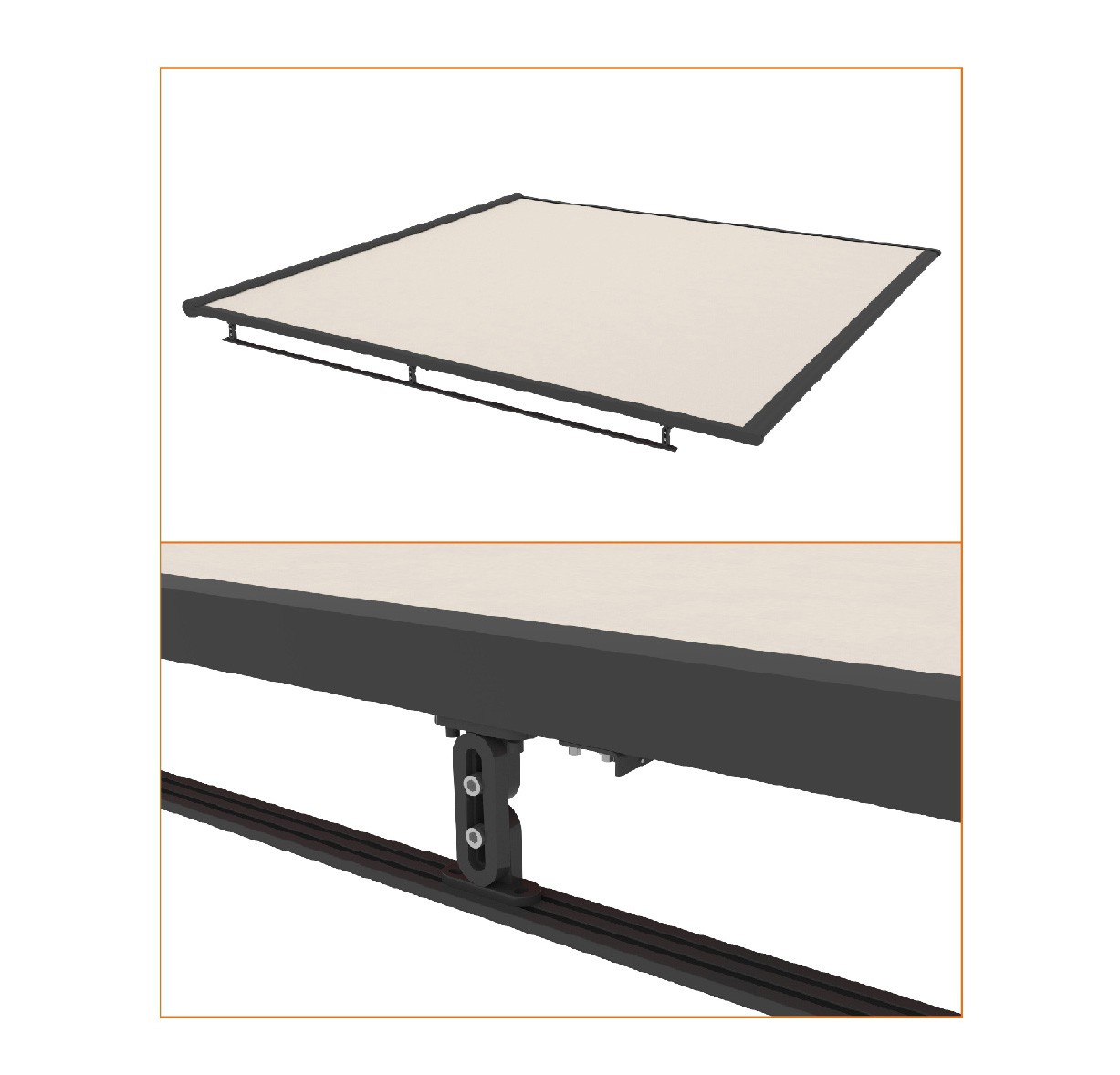

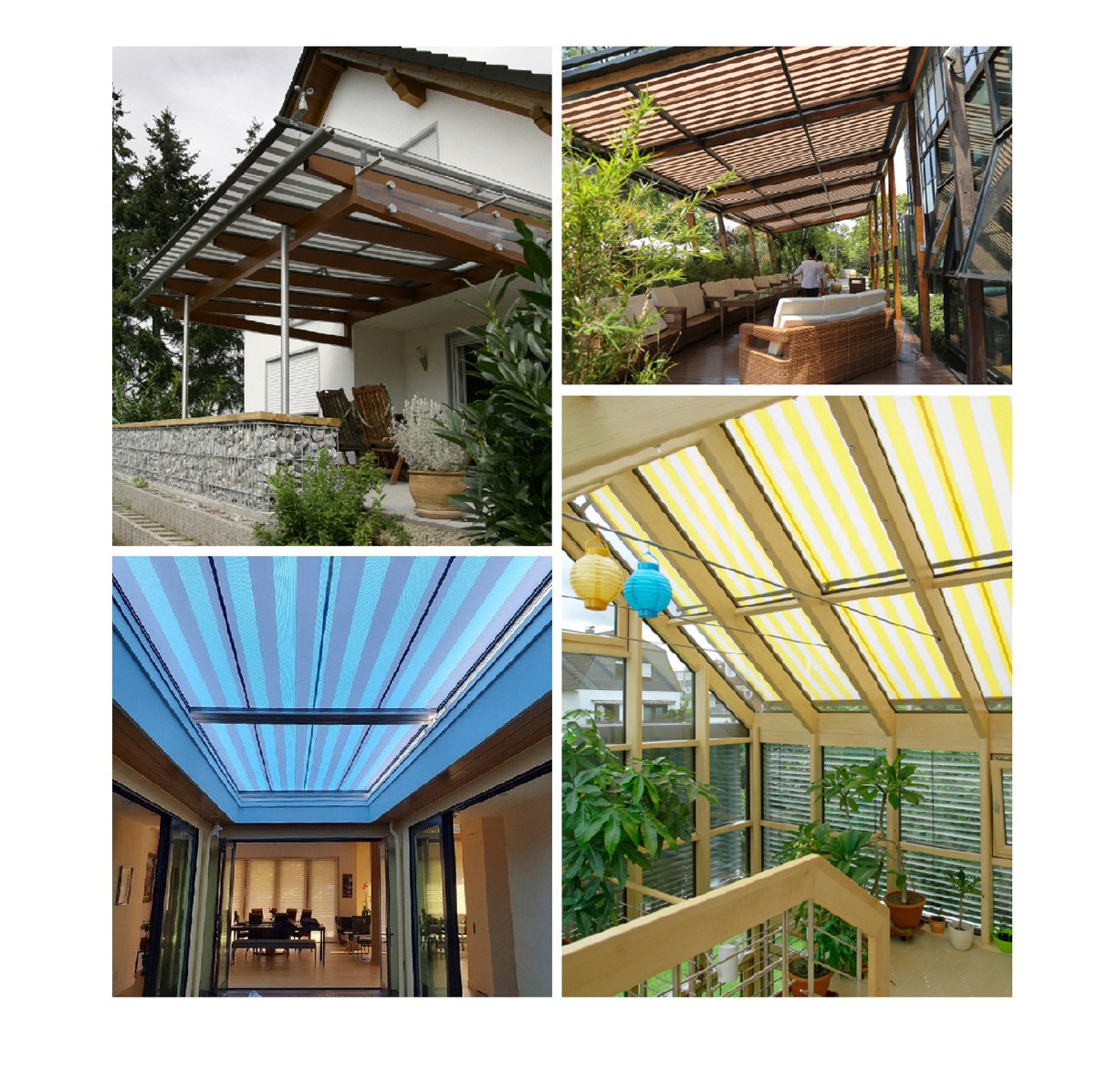

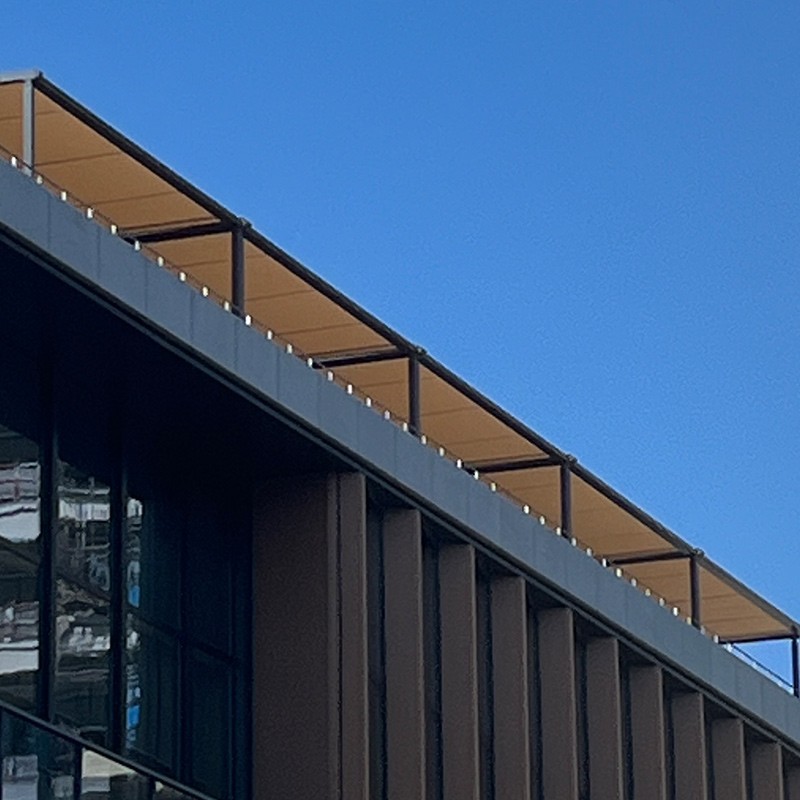

Top-mounted installation, suitable for villa terraces and sunrooms.

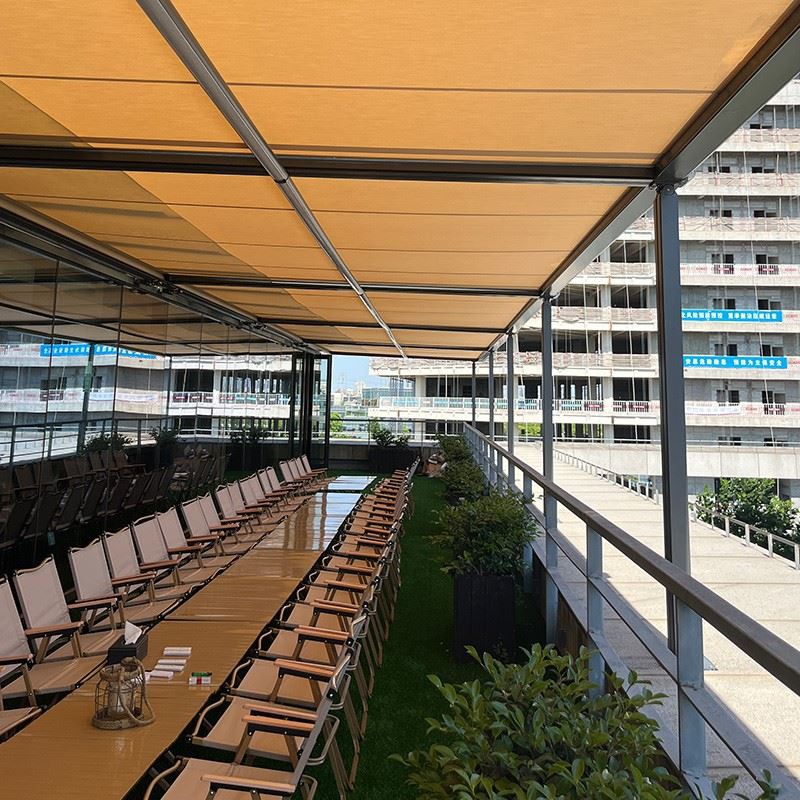

Suitable for various scenarios such as upscale bars, restaurants, and outdoor courtyards.

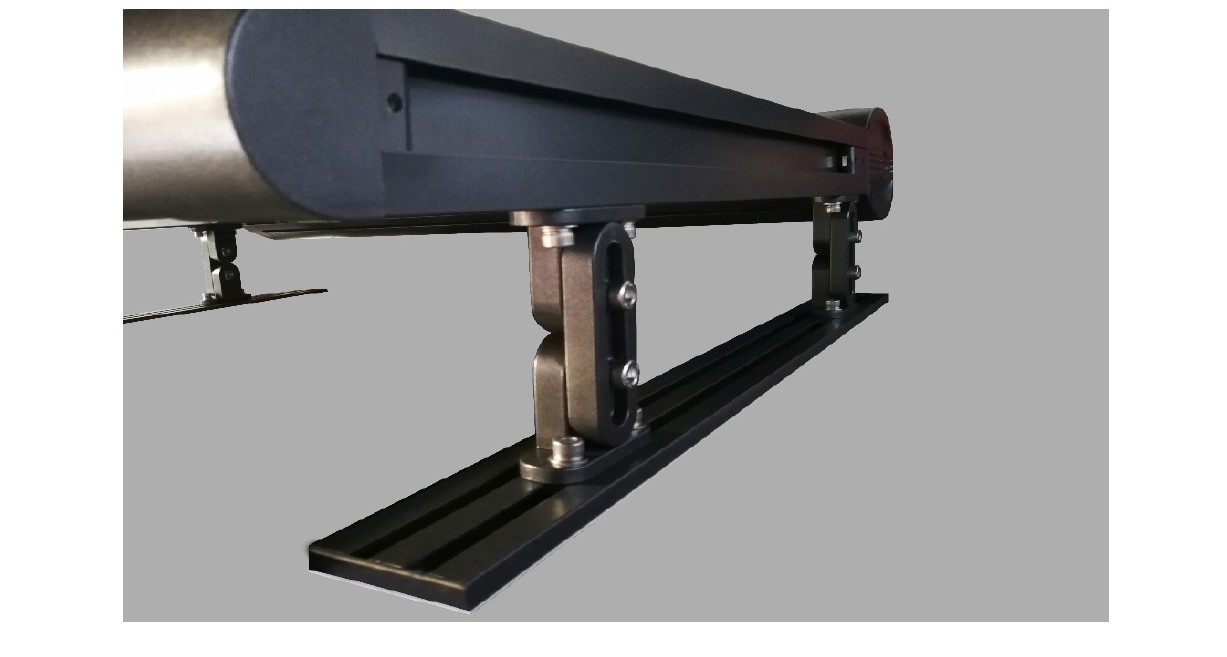

Top-mounted installation, with adjustable mounting bracket height to accommodate various complex installation site environments.

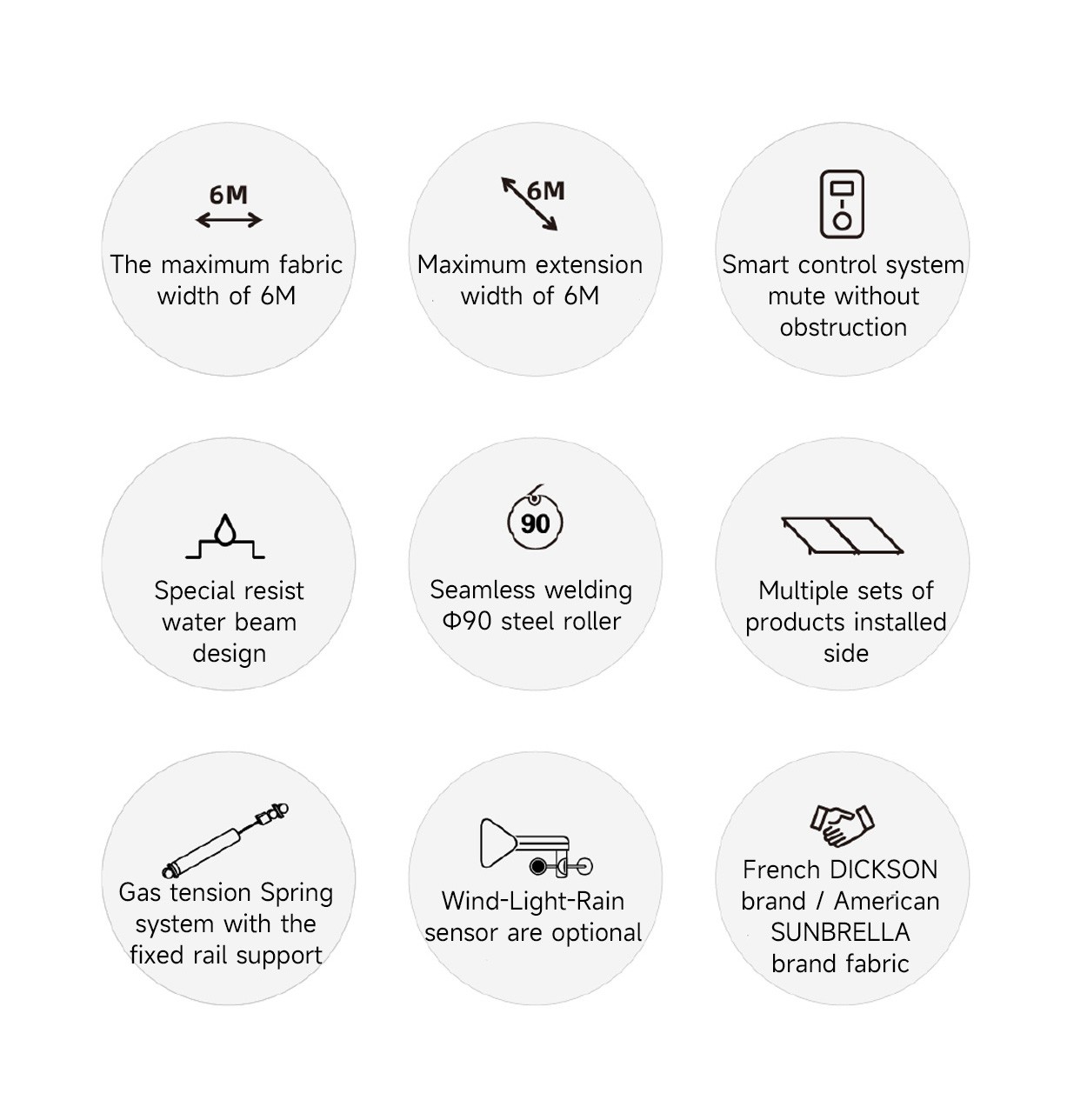

| Maximum product dimensions | Width * Projection: 6m*6m |
| High-strength steel roller | Diameter 90mm, thickness 1.5mm |
| Anti-bend U-shaped canopy beam size | W 143mm *H 70mm, thickness 2mm |
| Aerodynamic track size | W 68mm *H 79mm, thickness 2mm |
| Profile color | Dark gray/ white |
| Fabric | DICKSON&SUNBRELLA Fabric |
| Motor | Somfy Motor/CoolSpace Dedicated Motor |

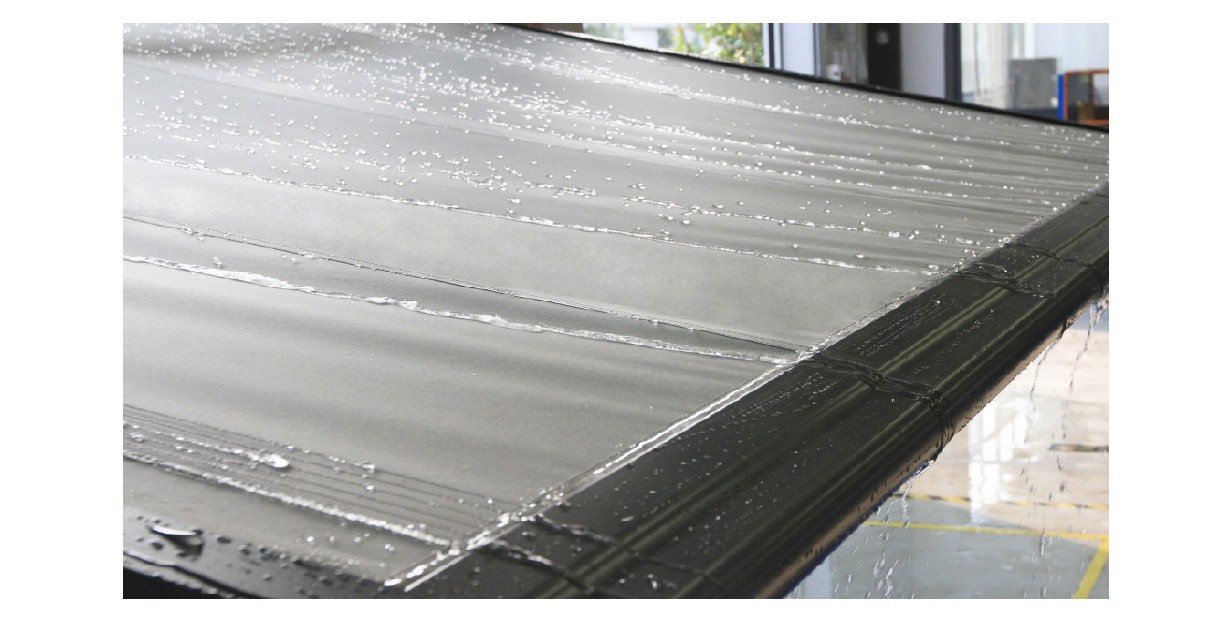

The fabric adopts a double-sided treatment process, which effectively prevents dirt and makes the membrane material easy to clean. At the same time, this process enhances the weather resistance of the membrane material.
Energy Efficiency Benefits of Sunroom Awnings
1. Superior Thermal Barrier (External Interception)
Unlike interior blinds, exterior roof awnings provide a more effective and proactive solution for controlling solar heat. By intercepting solar radiation before it penetrates the glass, an exterior shading system helps prevent the uncomfortable "Greenhouse Effect" commonly experienced in conservatories, sunrooms, and glass extensions. It can block a significant amount of solar heat gain, reducing heat buildup and helping maintain a lower temperature on the glass surface itself. This creates a natural thermal buffer between the outdoor environment and interior space, keeping rooms noticeably cooler and more comfortable. As an energy-efficient shading solution, roof awnings can also help reduce reliance on air conditioning during warmer months.
2. Reduction in HVAC Energy Consumption
By significantly reducing the radiant heat entering the sunroom, our exterior roof awnings help alleviate the heavy workload placed on air conditioning systems during hot weather. By blocking solar radiation before it passes through the glass, the shading system helps maintain a more stable and comfortable indoor temperature. During peak summer hours, this improved thermal protection can contribute to significant energy savings and lower cooling costs, depending on building conditions and climate. More than a simple sunshade, a roof awning transforms an overheated sunroom from a high-energy "hot spot" into a more sustainable, thermally efficient extension of your living space, enhancing year-round comfort and usability.
3. Protection of Interior Assets & UV Mitigation
Energy efficiency also extends to the preservation of valuable interior resources. Our high-performance shading fabrics can filter out up to 95% of harmful UV rays, helping protect furniture, flooring, curtains, artwork, and climate-control seals from premature fading, discoloration, and material degradation. By reducing prolonged exposure to intense sunlight, the awning helps maintain the appearance and performance of interior furnishings for longer. This improved durability reduces the need for frequent replacement or refurbishment, minimizing material consumption and household waste while contributing to long-term resource sustainability and a more environmentally responsible living environment.
4. Natural Lighting & Visual Comfort Management
Energy efficiency also extends to the preservation of valuable interior resources. Our high-performance shading fabrics can filter out up to 95% of harmful UV rays, helping protect furniture, flooring, curtains, artwork, and climate-control seals from premature fading, discoloration, and material degradation. By reducing prolonged exposure to intense sunlight, the awning helps maintain the appearance and performance of interior furnishings for longer. This improved durability reduces the need for frequent replacement or refurbishment, minimizing material consumption and household waste while contributing to long-term resource sustainability and a more environmentally responsible living environment.
