Tianjin Lucheng Industrial And Trading Co., Ltd. is one of the leading manufacturers and suppliers of low bottom track caterpillar screen door in China. We provide high quality products with competitive price for global clients. If you're going to buy discount low bottom track caterpillar screen door made in China, welcome to get quotation from our factory.
Low Bottom Track caterpillar Screen Door
Low Bottom Track caterpillar Screen Door is designed with versatility in mind and can be customised to suit different requirements. It is suitable for single or double doorways, as well as vertical or horizontal installation. Whether you require insect protection alone or wish to add additional features such as honeycomb blackout panels, our product can meet your specific needs.
Low Bottom Track caterpillar Screen Door is suitable for a variety of door types, including French doors, front doors and revolving doors. The product is simple to install and easy to remove; we can supply either kit materials or a finished product. If you purchase the kit materials, we will include detailed written installation instructions with every set of pleated insect screen doors. The standout feature of these pleated insect screen doors is their bottom rail height of just 4.6 mm (barrier-free design), ensuring smooth passage and minimising the risk of tripping.
Feature
- Barrier free design(caterpillar) gives perfect passibility
- Extremely versatile, it offers a range of configurations, from single-panel to multi-panel (up to six panels), catering to the needs of extra-wide doorways. --Max. 8m(w)*3.2m(H)
- Pleated Polyester fly screen fabric
- Light and air permeable
- Face and recess mounting on the door frame.
|
|
||||||||
|
Mounting with simple Tools |
Top Quality |
Customized product |
Good passibility |
Fixed with screw |
Face Installation |
Recess Installation |
Aluminium Profile |
Pleated Mesh |
Parameter
|
Model |
ZB01 |
|
Popular Size |
Customized size |
|
Max. Width(mm) |
8000 (Multi-panel) |
|
Max. Height(mm) |
3200 |
|
Min. Width(mm) |
500 |
|
Min. Height(mm) |
1100 |
|
Profile |
|
|
Profile material |
Aluminium |
|
Profile Painting |
Electrostatic Powder Coating |
|
Profile Color |
White(RAL9016) Or other colors |
|
Color Surface |
Smooth |
|
Installation Depth(mm) |
41 |
|
Mesh |
|
|
Farbic Color |
Black |
|
Fabric Material |
100% Polyester (PES) |
|
Fabric Holes |
16*18/ in² |
|
Assembly |
|
|
Customizable size |
Yes |
|
Mounting type |
Screwing / Glue |
|
Mounting way |
Face Fit (fit on the surface of Window frame) |
|
Mounting position |
Indoor or Outdoor |
|
Tools |
Pencil,tape measure, metal saw, Phillips screwdriver,Electric Drill |
|
Maintenance |
|
|
Washable |
Yes |
|
UV-resistant |
Yes |
|
Sales way |
|
|
Components |
No |
|
Finished set |
Yes |
|
Certificate |
CE,BSCI,ISO9001, ISO14001 |

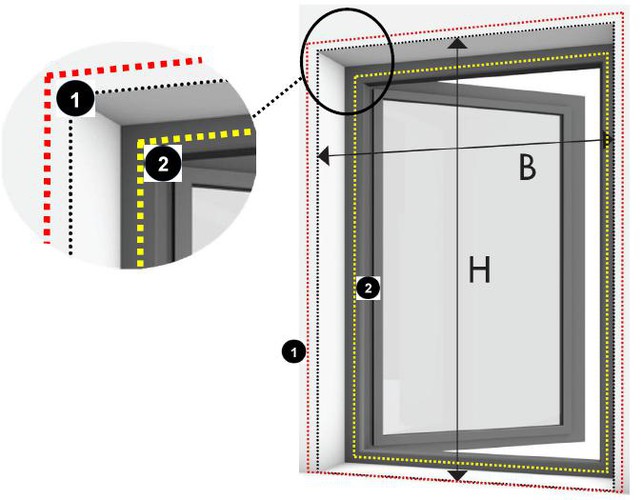

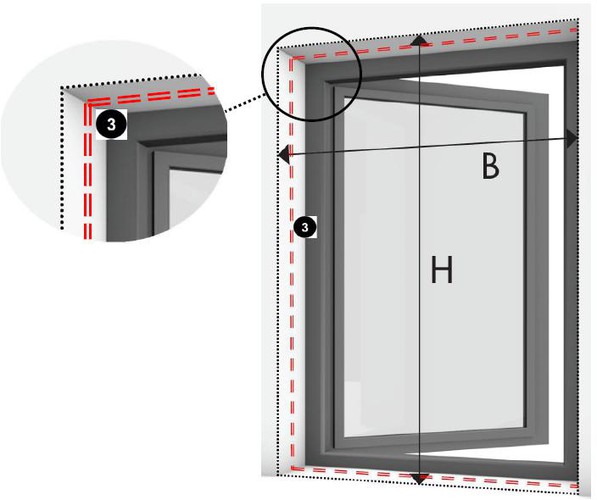

Mounting Way
Package
Our Factory
Tianjin Lucheng Industry & Trading Co., Ltd.TEDA was established in 1995 as a specialized manufacturer of anti-mosquito screen systems and shading solutions. Located in the port city of Tianjin, the company enjoys excellent logistics connectivity. After 26 years of growth, Lucheng serves global markets, including renowned wholesalers and supermarket chains in Europe, America, and Australia. With an expert design team and patented technologies, we manage OEM/ODM orders efficiently. Our proprietary automated lines for screens and awnings enable quick, high-volume production at competitive prices. A professional quality team monitors every step, from material intake to delivery, adhering to BSCI, ISO, Blue Angle, and GS standards. We support both catalog choices and custom requests.
Our Strength
Exhibition & Honor
FAQ
Q: How do you prefer to be paid?
A: We request a 30% deposit via T/T to initiate production. The remaining 70% is due before we ship. For your peace of mind, we will share photos of the final products and their packaging for your confirmation before you make the final payment.
Q: What delivery options do you provide?
A: FOB is our recommended and most common term for efficiency. However, to accommodate your needs, we also work with EXW, CIF, and DDP.
Q: Where will my order ship from?
A: Our standard ports of shipment are Qingdao Port and Tianjin Port.
Q: Could you specify the production lead time?
A: Lead times are differentiated: for bespoke retail-scale orders, delivery is typically effected within 15 days. For volume manufacturing orders, the process requires 30 to 50 days post-deposit clearance. The definitive schedule is a function of the order's technical specifications and volume.
Q: Does your company possess OEM and ODM competencies?
A: Affirmative. We operate an in-house design division staffed by professionals with a minimum of six years of sector-specific design experience. We engage in both contract manufacturing to client-provided specifications (OEM) and collaborative design and manufacturing (ODM), inclusive of required tooling and fixture development.
Q: Please outline your sample provision policy.
A: Samples are furnished subject to the client bearing the cost of the sample unit and associated freight charges. This expenditure is subsequently credited against the value of any ensuing formal purchase order.
Q: Describe your goods testing protocol.
A: All products are subject to a mandatory pre-market endurance qualification, requiring successful completion of over 6000 operational cycles.
Q: What sales services are included?
A: We provide tailored sales support, which can include: custom product manuals & packaging, installation animation videos, sample display stand design/production, and other required sales tools.
Q: Is component procurement available?
A: Yes. We can supply full component sets (aluminum profiles, mesh screens, plastic fittings). Support includes video production guidance, processing solutions, and equipment information.
